Manifold Valves from IPT

November 22, 2010 By admin

Share

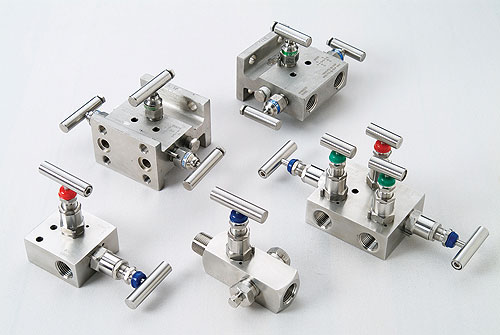

ERIE, PA – Innovative Pressure Technologies (IPT) introduces 2-, 3- and 5-Way Manifold Valves. These valves combine the function of a tee, calibration valve, isolation valve and all tubings and fittings into a single valve configuration, and are designed to connect a system impulse line and transmitter. R-Type manifolds provide differential pressure of flow recorder to impulse tubing. D-Type, T-Type and H-Type manifolds bolt directly to differential pressure instruments to eliminate the need for piping, valves and fittings.


Metal seated units feature a maximum pressure rating up to 6,000 PSI at 200°F (414 bar at 93°C). The pressure rating at maximum temperature for PTFE units is 4,130 PSI at 450°F (284 bar at 232°C), and for Grafoil units is 1,500 PSI at 1000°F (103 bar at 538°C). Each has a 0.156 in. (4.0 mm) orifice.

Each manifold valve features bonnet lock pins to prevent accidental loosening, and adjustable packing reduces the possibility of bonnet/body leaks. All stem packing is located below the stem threads to prevent galling, corrosion and contamination. Full back-sealed bonnets prevent accidental stem removal and blowout. Metal seat units feature a free swiveling ball end stem as standard to ensure bubble-tight valve closure without seat galling.

Innovative Pressure Technologies
www.inpressure.com

::Design World::

Filed Under: Valves / Manifolds Tagged With: Innovative Pressure Technologies
