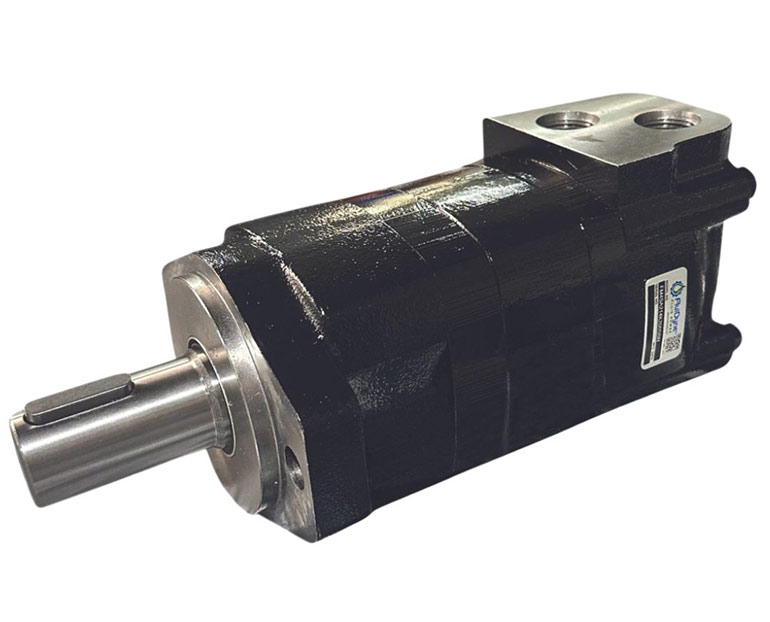

FluiDyne Fluid Power announced the newest addition to its motor product line: the FM4 series motor, which is now available in stock alongside the FM1, FM3, and FM50/51 models.
The FM series geroter gear set and spool valve flow distribution make these hydraulic motors compact, highly efficient, and perfect for low-speed high-torque applications. Whether you’re utilizing parallel or series systems, these motors deliver exceptional performance.
Crafted with advanced construction techniques, FluiDyne’s FM series motors are designed to be lightweight without compromising on durability. Their motors also meet the quality standards of the ISO 9001:2000 quality system.
Offered in displacements of 80 to 500 cc (4.88 to 30.5 in.3), these are rated for speeds of 850 to 144 rpm continuous and 956 to 246 rpm intermittent. They are rated for maximum torques of 1,575 to 6,363 lbf-in. continuous or 2,522 to 7,612 lbf-in., intermittent. Maximum pressure ratings range from 2,538 to 1,730 psi continuous or 4,060 to 2,175 psi intermittent.
FluiDyne’s motors have 18-month warranty and can be shipped within one business day.
